Bring AI to your video meeting.
The RC841UX delivers stunning 4K video and crystal-clear audio to elevate your Zoom or Microsoft Teams meetings. Paired with the RT13 dynamic touch-screen, it offers seamless control and an enhanced meeting experience in medium to large spaces.

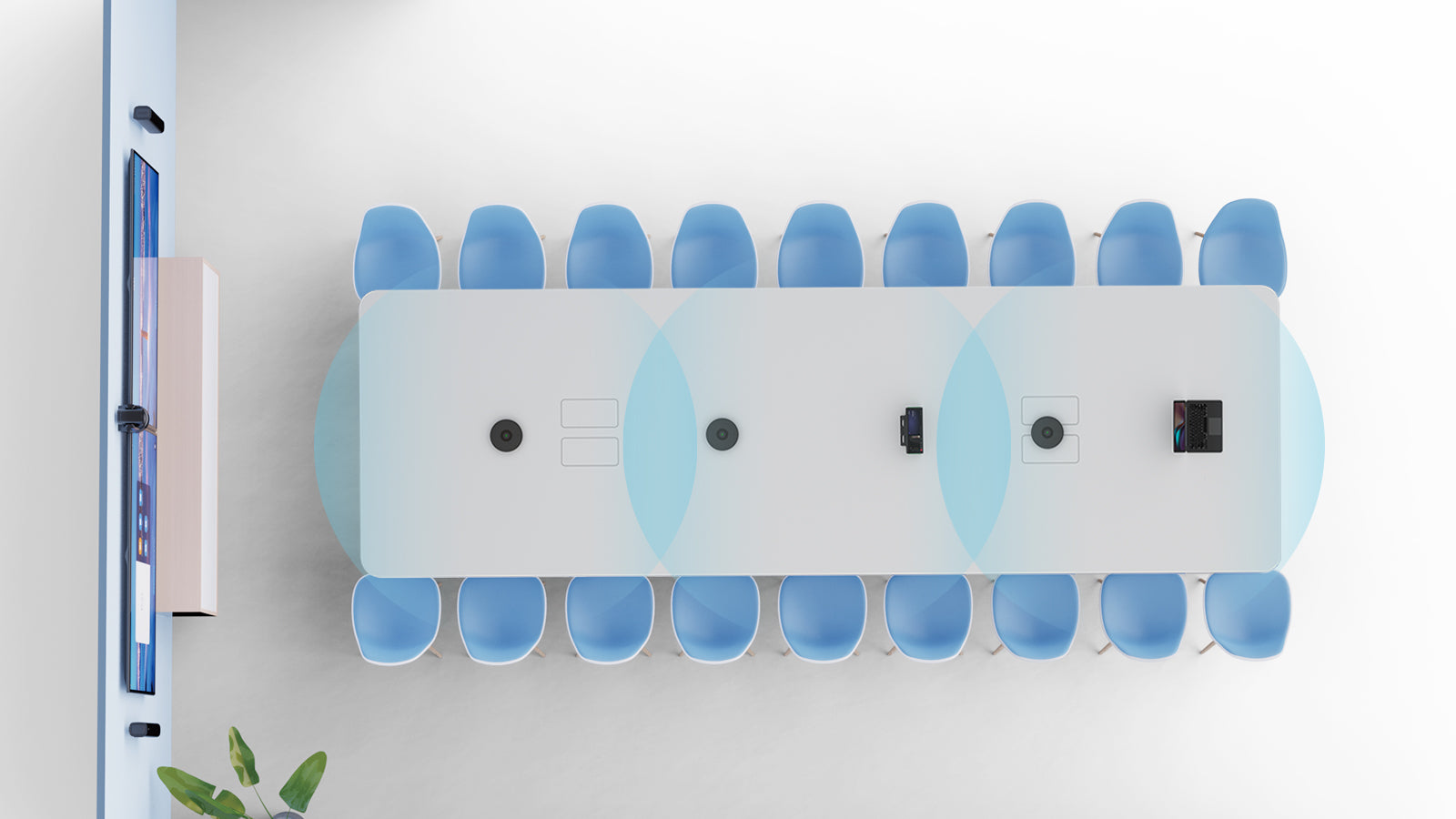

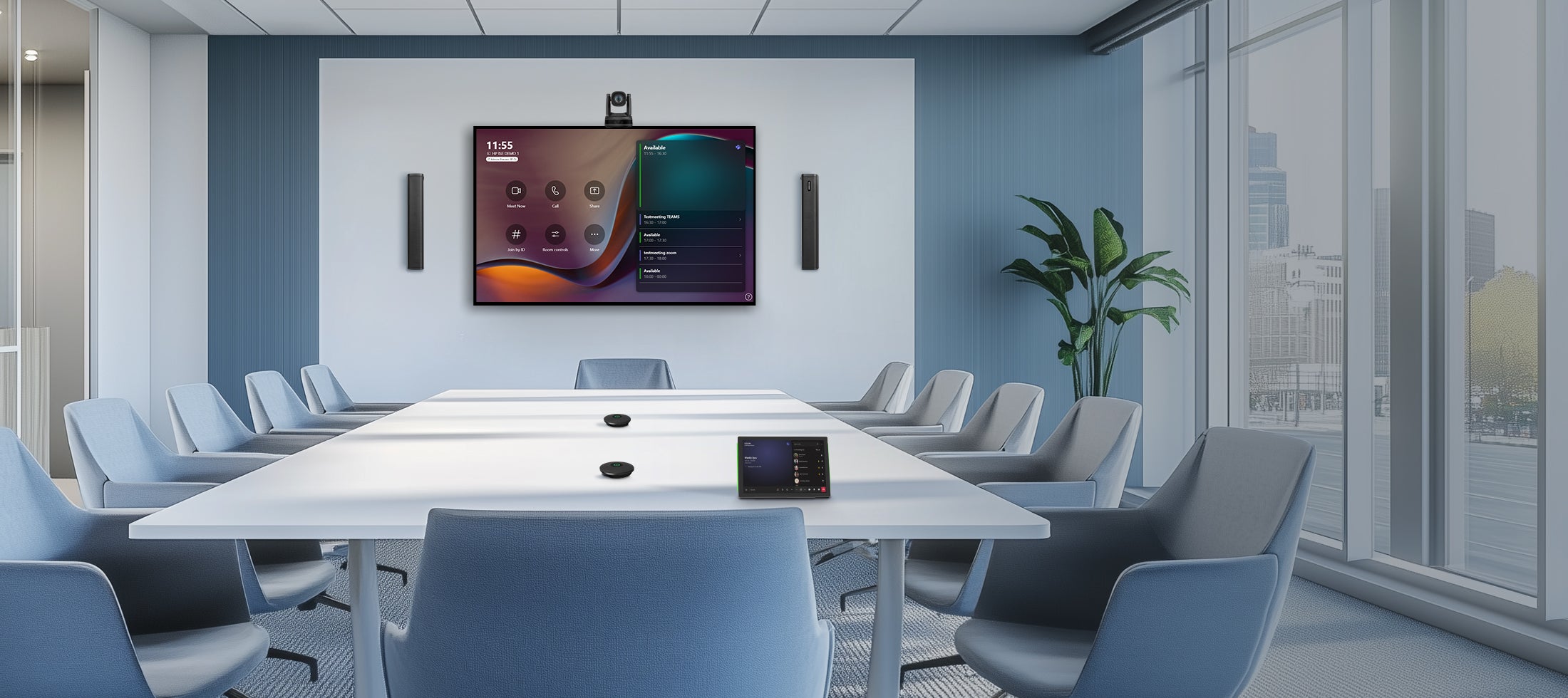

Built for medium to large meeting spaces.
Cameras
Every frame in focus.
Up to 4k@60fps with SONY 1/2.8-inch CMOS sensor

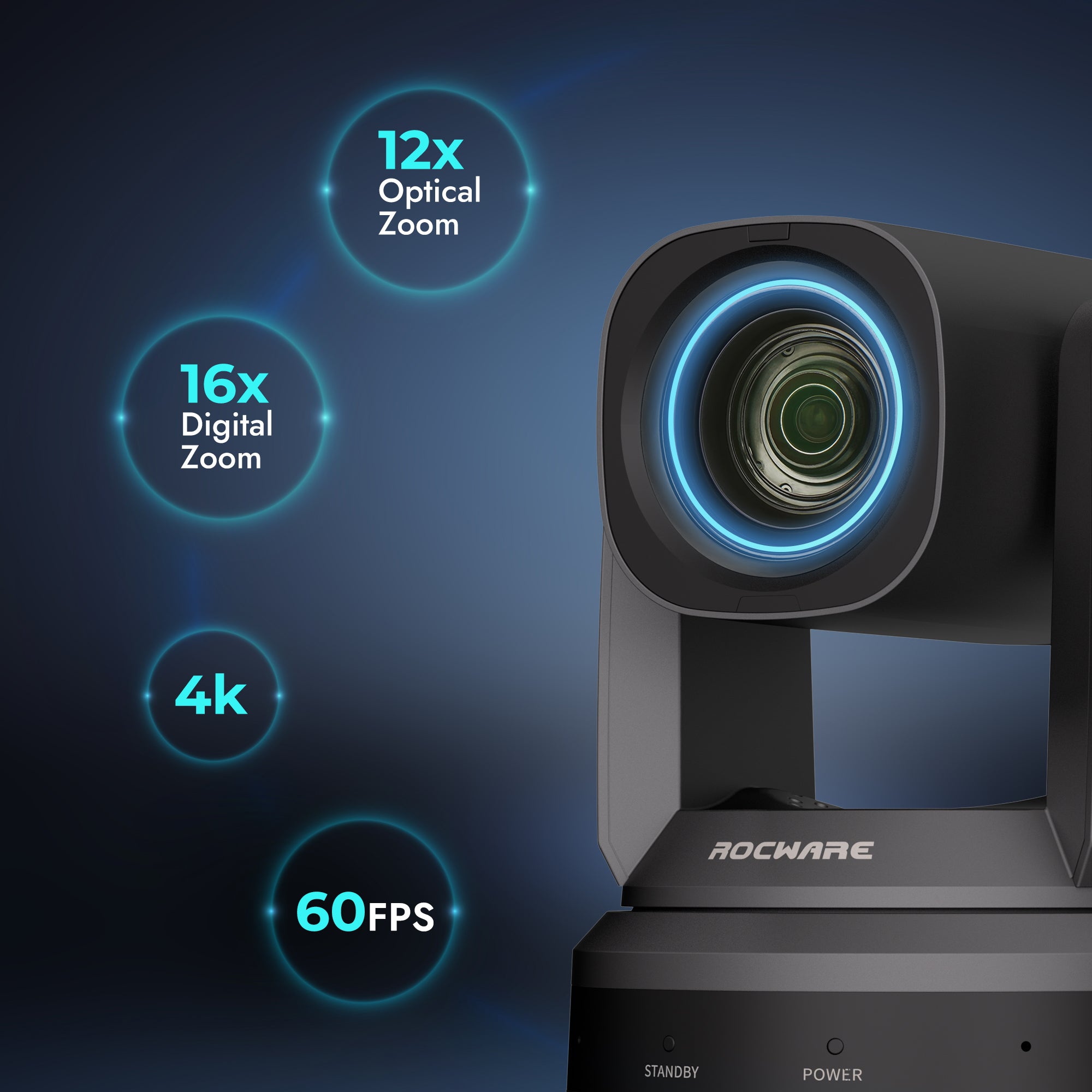

Equipped with 12x optical and 16x digital zoom
Powerful Zoom for Detailed Clarity
It captures both near and far details with no distortion, offering crisp, clear visuals.

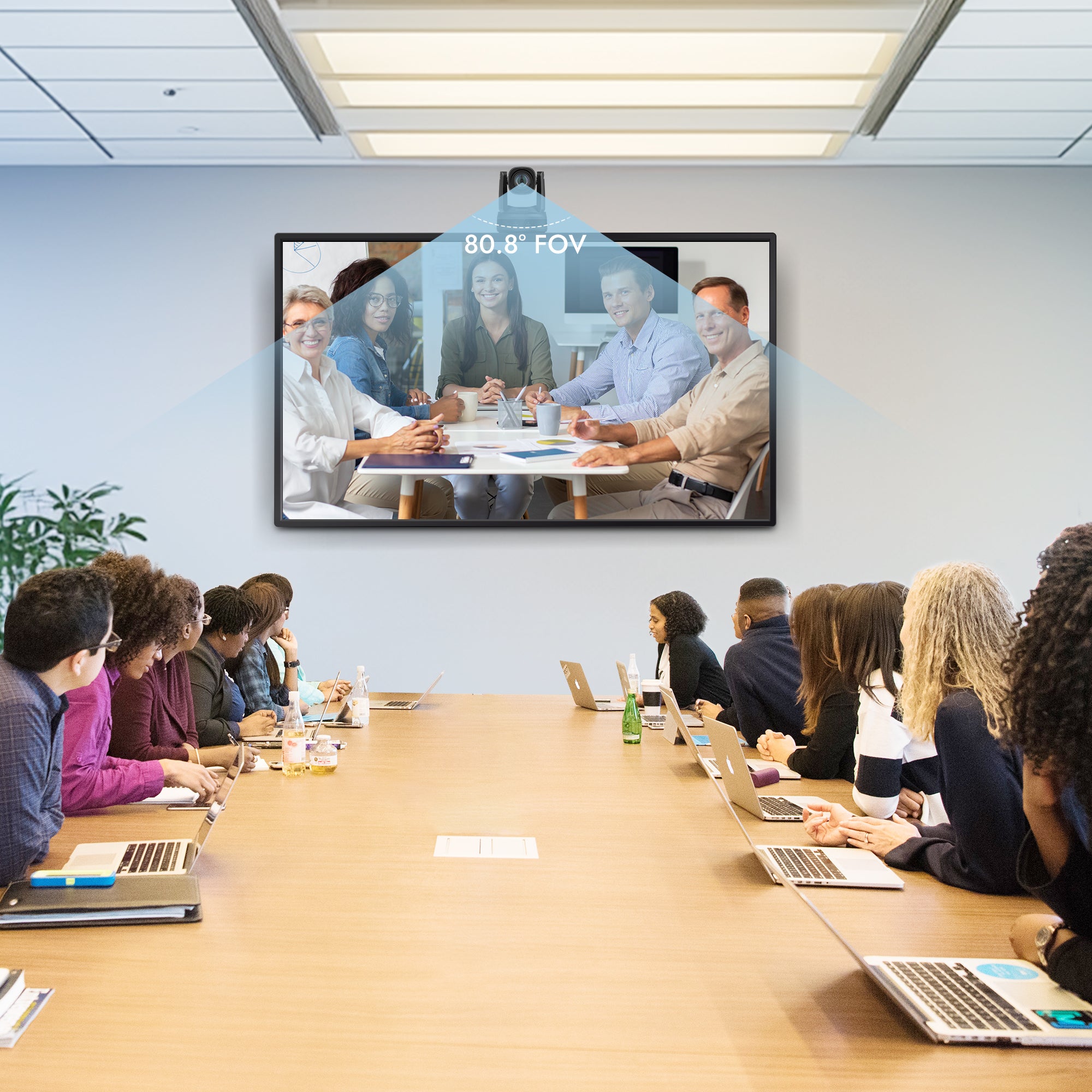

80.8° wide-angle lens
Wide-Angle Lens for Full Coverage
This camera ensures a clear and comprehensive view of the entire room.

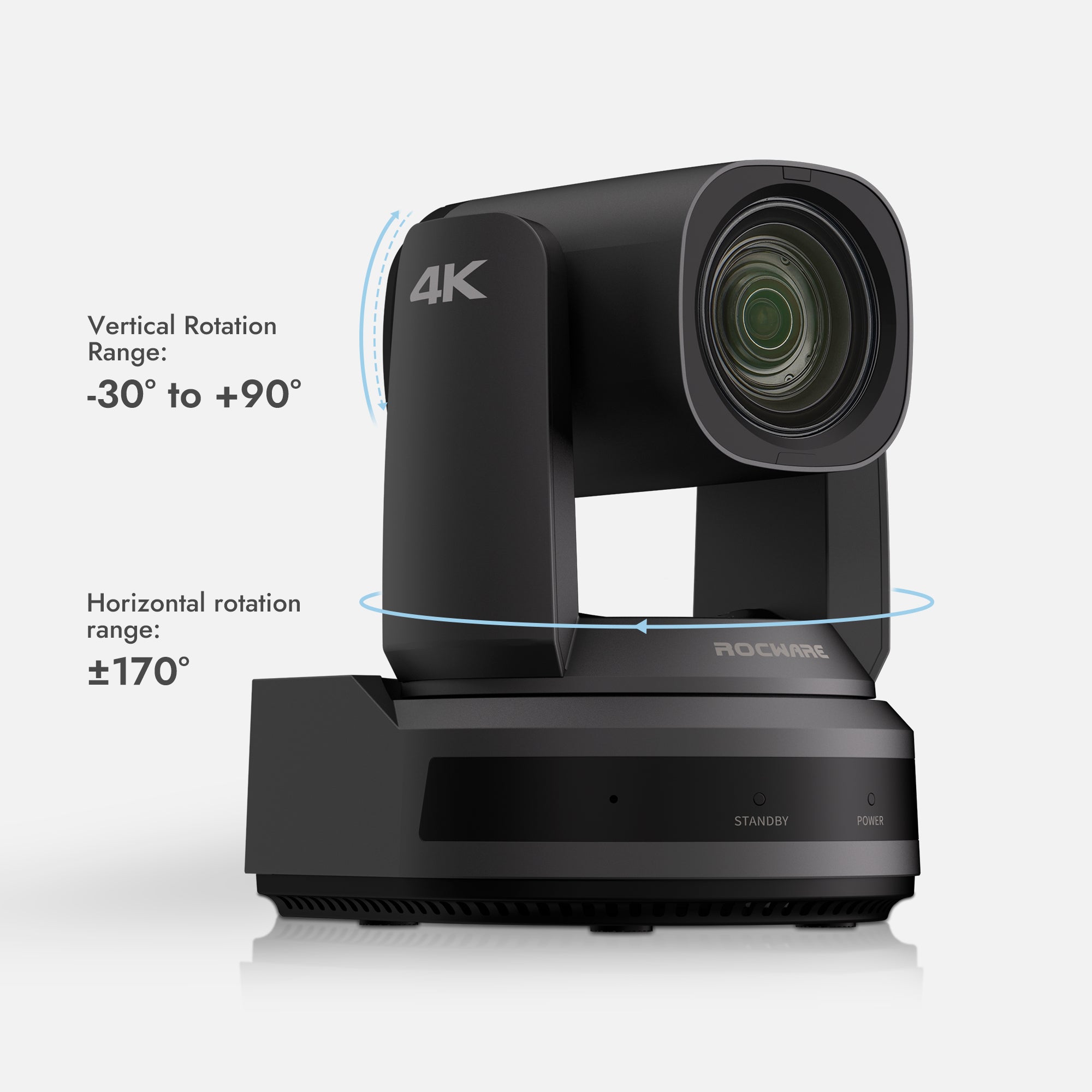

Silent Mechanical PTZ
With ±170° horizontal and -30°~+90° vertical rotation, this camera covers every angle of the room, even in corners.
AI Features
Shaped for innovation.
Zone Tracking
Intelligently detects and switches between different areas of the room, focusing on active speakers or participants for seamless communication.
Presenter Tracking
Tracks the speaker’s movement in real-time, keeping them centered in the frame for an engaging, professional presentation.

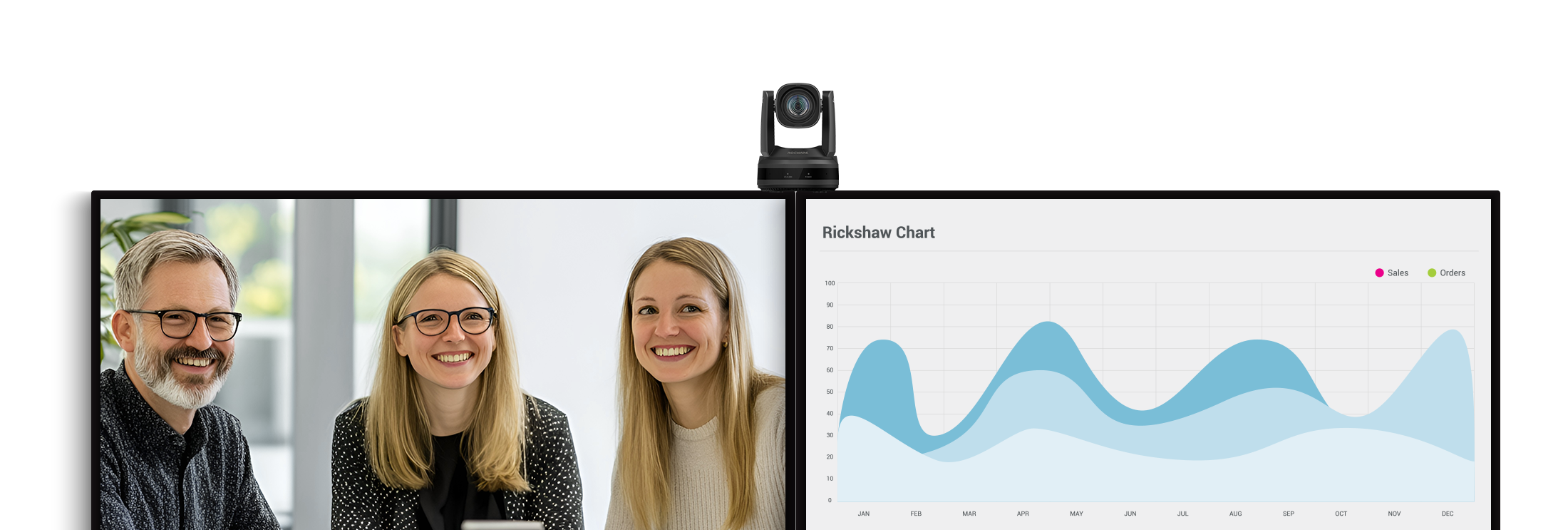

Support up to two 4K screens, bringing your teammates and content into sharper and larger view than ever before.

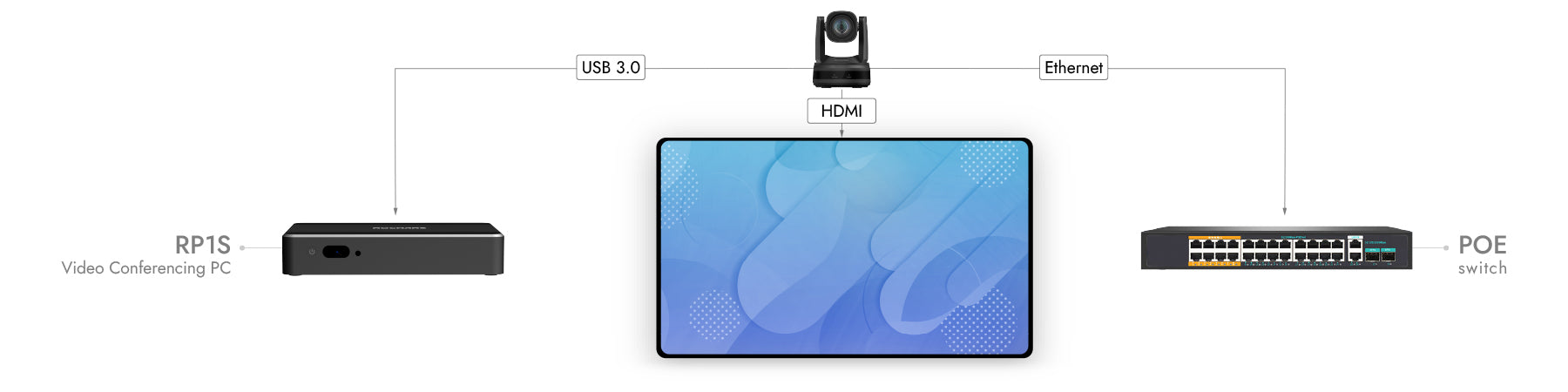

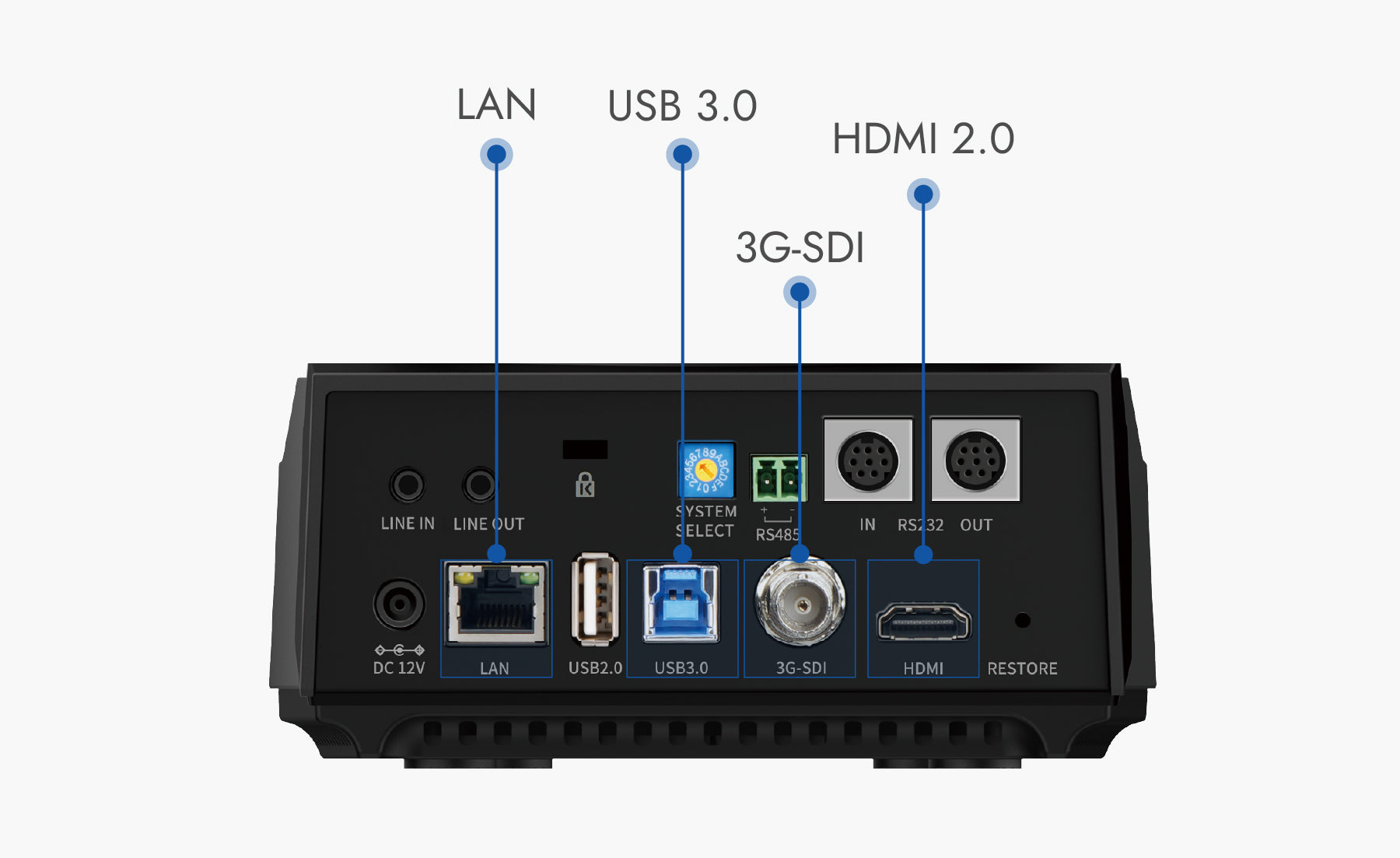

Seamless Connectivity, Anytime.
Note: For simultaneous output of four HD digital signals, please contact Rocware for specific version support.
HDMI 2.0, 3G-SDI, USB and LAN support simultaneous HD signal output, while 3G-SDI enables stable transmission up to 150 meters at 1080p30.
Buy into the solution.

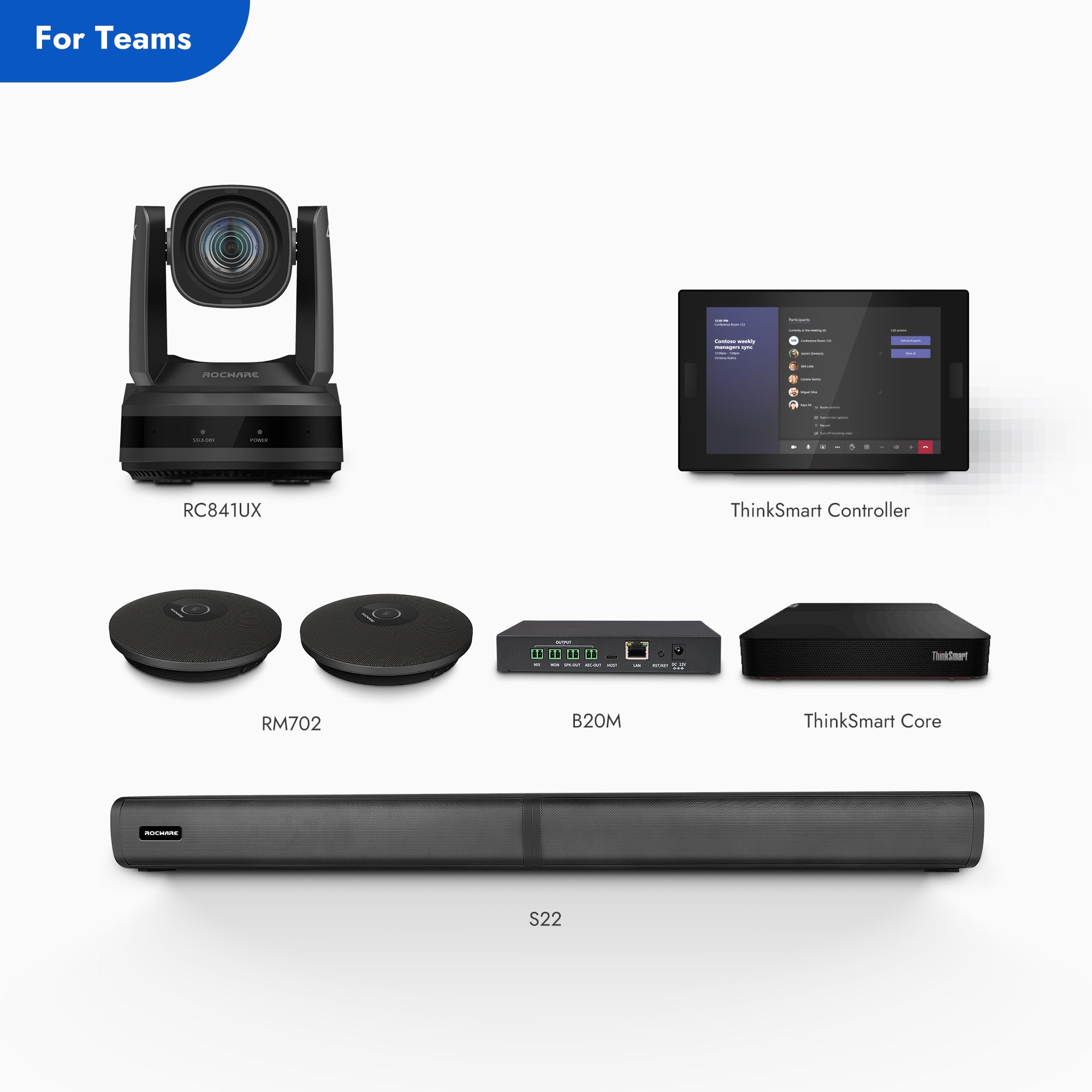

Rocware Large Room Solution for Microsoft Teams
- RC841UX: Pro PTZ Camera
- ThinkSmart Controller
- ThinkSmart Core: A computing device built on the Intel vPro® platform and certified for Microsoft Teams
- RM702A: AI-EnhancedConferenceArrayMicrophone
- B20M: Audio Processor
- S22: Hi-Fi Speaker
Learn more about Rocware meeting room solutions for Microsoft Teams
Tech Specs
CAMERA SPEC
Signal Format
HDMI：4Kp60/59.94/50/30/29.97/25 fps, 1080p60/59.94/50/30/29.97 fps, 1080i60/59.94/50 fps, 720p60/59.94 fps
3G-SDI：1080p60/50/30/29.97/59.94/25 fps, 1080i60/50/59.94 fps, 720p60/59.94 fps
Sensor 1/2.8-inch, CMOS, 8.46 MP
Scanning Mode Progressive
Lens 12x, f=3.47 mm ~ 41.65 mm, F1.84 ~ F3.72
Digital Zoom 16x
Minimum Illuminance 0.5 Lux @ (F1.8, AGC ON)
Shutter 1/30 s ~ 1/10000 s
White Balance Auto, Manual, Indoor, Outdoor, One-push
Backlight Compensation Supported
Digital Noise Reduction 3D Digital Noise Reduction
SNR ≥55dB
HFOV 80.8° ~ 7.5°
VFOV 49.9° ~ 4.3°
USB FEATURES
Operating System Windows 8, Windows 10, Windows 11,
Mac OS X, Linux, Android
Color System / Compression YUY2 / MJPEG / H.264
Video Format
YUY2: Max 1080P30;
MJPEG: Max 4K30;
H.264 : Max 4K30;
Frame Rate 1fps~30fps
USB Audio Support
USB Video Communication Protocol UVC 1.1
UVC PTZ Control Support
NETWORK FEATURES
Video Codecs H.264 / MJPEG
Video Stream Main Stream, Sub Stream
Main Stream Resolution 3840×2160, 1920×1080, 1280×720, 1024×576 etc.
Sub Stream Resolution 720×480, 320×240 etc.
Video Bit Rate Main Stream: 32 kbps ~ 51200 kbps; Sub Stream: 32 kbps ~ 20480 kbps
Bit Rate Control CBR, VBR
Frame Rate 50 Hz: 1 fps ~ 50 fps; 60 Hz: 1 fps ~ 60 fps
Audio Codecs AAC
Audio Bit Rate 96 kbps, 128 kbps
Protocol NDI®|HX3*, SRT, TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast, etc.
*This feature is optional.
INPUT / OUTPUT INTERFACE
USB Interface
1×USB 3.0, Type-B, device interface,
support Video& Audio
1×USB 2.0, Type-A, host interface
HDMI Output Interface 1×HDMI 2.0
Network Interface 1x RJ45: 10M/100M/1000M Adaptive
Ethernet
Audio Interface 1×Line In, 3.5mm Jack
1×Line Out, 3.5mm Jack
Communication Interface
1×RS485: 2pin phoenix port, Max Distance
1200m, Protocol: VISCA/Pelco-D/Pelco-P
1×RS232 In: 8pin Mini DIN, Max Distance
30m, Protocol: VISCA/Pelco-D/Pelco-P
1×RS232 Out: 8pin Mini DIN, Max Distance
30m, Protocol: VISCA
Power Interface JEITA type (DC IN 12V)
GENERAL SPECIFICATION
Input Voltage DC 12V / PoE+ (802.3at)
Input Current 2A (Max)
Operating Temperature 0°C ~ 40°C
Storage Temperature -40°C ~ 60°C
Power Consumption 18W (Max)
Dimension 142.5mm (W) × 151.9mm (D) × 188.3mm (H)
Weight 1.56kg
